TNEER Valvetronic Exhaust System for Porsche Cayenne S / Coupe S (E3.2) 4.0T 2024+

TNEER Valvetronic Exhaust System for Porsche Cayenne S / Coupe S (E3.2) 4.0T 2024+

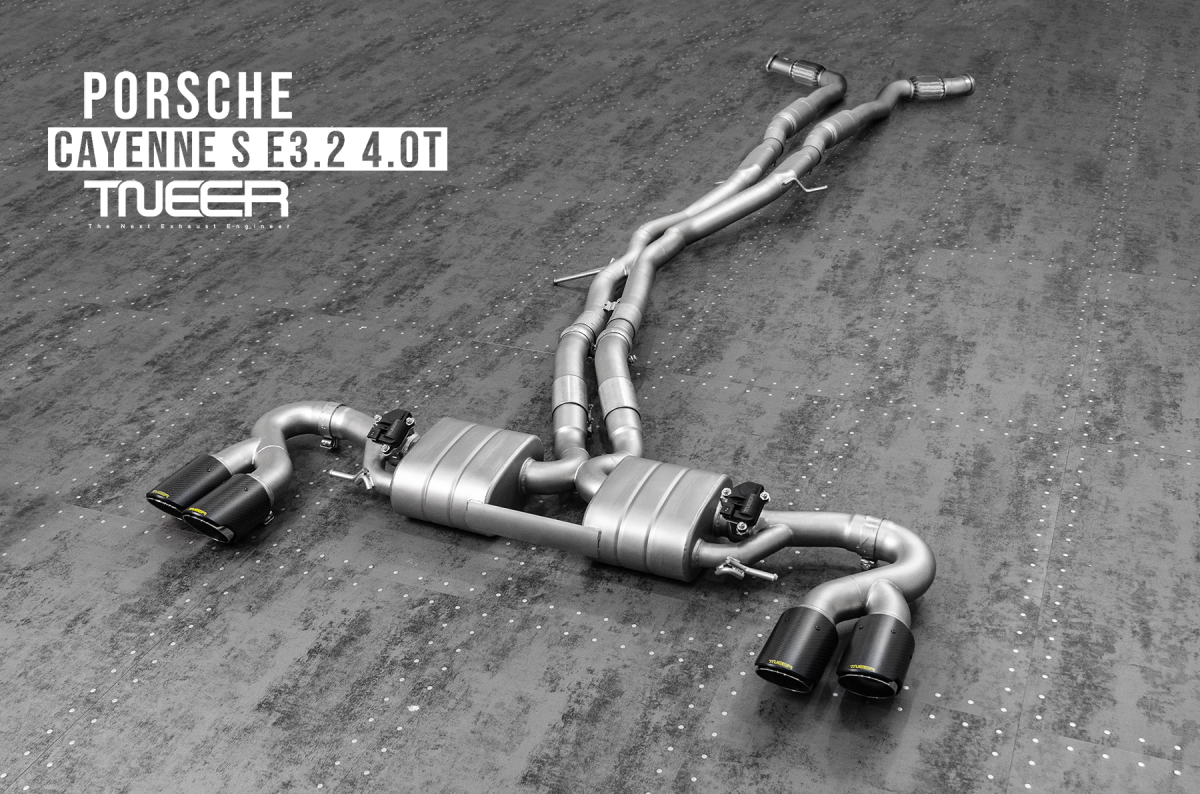

The Porsche Cayenne S and Cayenne Coupe S E3.2 represent a significant powertrain change from the 2.9T twin-turbocharged V6 of the previous Cayenne S specification, introducing a 4.0-litre twin-turbocharged V8 producing 468 horsepower to the S designation for the first time. The move to a twin-turbocharged V8 brings a fundamentally different exhaust system architecture requirement to the Cayenne S platform, with larger displacement, greater thermal output, and a V8 cylinder arrangement that demands a different approach to mid-system pulse management than the V6 configuration it replaces. The Cayenne S E3.2's large SUV body, all-wheel drive system, and updated E3.2 chassis architecture create exhaust routing requirements specific to this generation, with extended primary runs through the underbody and packaging constraints introduced by the V8's greater physical dimensions within the engine bay. TNEER engineers this complete valvetronic system specifically for the E3.2 4.0T Cayenne S and Cayenne Coupe S, addressing the full exhaust path from the front pipe through the mid X-pipe to the valvetronic rear mufflers in a single cohesive system built from high-grade stainless steel throughout.

Each section is formed from single-piece high-grade stainless-steel tubing using robotic pipe bending technology, producing continuous tube geometry throughout the complete system without the weld joints and flow disruptions of multi-segment construction. The front pipe addresses the primary exhaust path from the twin-turbocharged V8's manifold outlets, establishing the flow characteristics that carry through the remainder of the system. The mid X-pipe cross-links both exhaust banks at the mid-system junction, balancing pulse energy between the V8's cylinder groups. On a twin-turbocharged V8 platform, mid-system scavenging through an X-pipe contributes to exhaust flow efficiency and tonal coherence across the rev range, allowing the character of the Cayenne S's 4.0-litre V8 to express itself more fully through the system at every engine speed. The system installs to all factory mounting locations on both the Cayenne S and Cayenne Coupe S body configurations, requiring no structural modification and maintaining correct chassis alignment throughout.

The ECU-controlled valvetronic rear mufflers manage acoustic output through the Cayenne S E3.2's existing vehicle architecture without secondary controllers or aftermarket modules. Valves closed, the system maintains a composed tone appropriate for daily and highway use while presenting more of the twin-turbocharged V8's character than the factory exhaust allows at any throttle position. Valves open, the full acoustic output of the 4.0-litre twin-turbo V8 is unobstructed and responds directly to throttle input and engine speed through the vehicle's existing drive mode architecture. The transition from the previous generation's V6 to the V8 is immediately apparent in the acoustic character the system delivers at full throttle with valves open, reflecting the broader, more authoritative tone of an eight-cylinder configuration at sustained load.

Two tip configurations are available to complete the system at the rear fascia of both the Cayenne S and Cayenne Coupe S. The quad silver tips provide a clean, high polish finish consistent with the Cayenne S's premium SUV aesthetic. The quad carbon fiber tips present an alternative for owners whose build direction calls for exposed carbon at the rear, providing a visual distinction that complements both standard and modified E3.2 Cayenne S builds.

Optional Downpipe Configurations

For owners who want to address the primary restriction point in the exhaust path, TNEER offers two downpipe specifications that deliver meaningful performance and acoustic improvement beyond what the front pipe, mid X-pipe, and valvetronic muffler system alone provides.

• The race downpipes remove the factory catalytic converters immediately downstream of the twin-turbocharged V8's turbocharger outlets, where back pressure reduction has the most direct effect on turbine behavior, spool characteristics, and mid-range torque delivery. On a twin-turbocharged V8 platform producing 468 horsepower, the relationship between downstream restriction and turbocharger efficiency is immediate and measurable at every point in the rev range. These components are intended for closed course and off-road use.
• The 200-cell sport downpipes retain a high-flow catalytic substrate in place of the factory units, reducing restriction significantly while maintaining a level of emissions compliance appropriate for street-driven builds. For E3.2 Cayenne S and Cayenne Coupe S owners who require a balance between full-system performance and daily usability, the 200-cell specification delivers a substantive upgrade within a practical operating profile.

All downpipe components are fabricated from high-grade stainless steel and engineered to the same fitment standard as the remainder of the complete system.

About TNEER:

TNEER is built around a single engineering conviction: the exhaust system is not a peripheral component. It is the primary interface between the engine and the driver's experience of it. Every system TNEER produces is developed to bring out the true voice of the engine it is built for, improving exhaust flow and delivering a distinct tone that is mechanical, raw, and directly connected to the character of the car.

The manufacturing process that defines TNEER's fitment standard is their high-tech robotic pipe bending technology. Rather than fabricating exhaust routing from multiple welded sections, TNEER forms each tube from a single continuous piece, bending high-grade material to navigate the spatial constraints of each specific engine bay without the diameter reductions, flow disruptions, and structural inconsistencies that welded multi-piece construction introduces. The result is an exhaust system with continuous tube geometry, perfect fitment to the platform it is built for, and no compromises in the routing that precision bending makes unnecessary.

For enthusiasts who regard sound and performance as inseparable elements of the driving experience, TNEER engineers each system to deliver both from the first throttle input.

Note:

• Downpipes are not CARB certified and may not be legal for use on emissions controlled vehicles; intended for off road use only.
• ECU tuning may be required due to removal of factory catalytic converters.

Fitment:

• Porsche Cayenne S / Coupe S (E3.2) 4.0T 2024+
