TNEER Valvetronic Exhaust System for BMW G05 X5 / G06 X6 40i 2019-2026

TNEER Valvetronic Exhaust System for BMW G05 X5 / G06 X6 40i 2019-2026

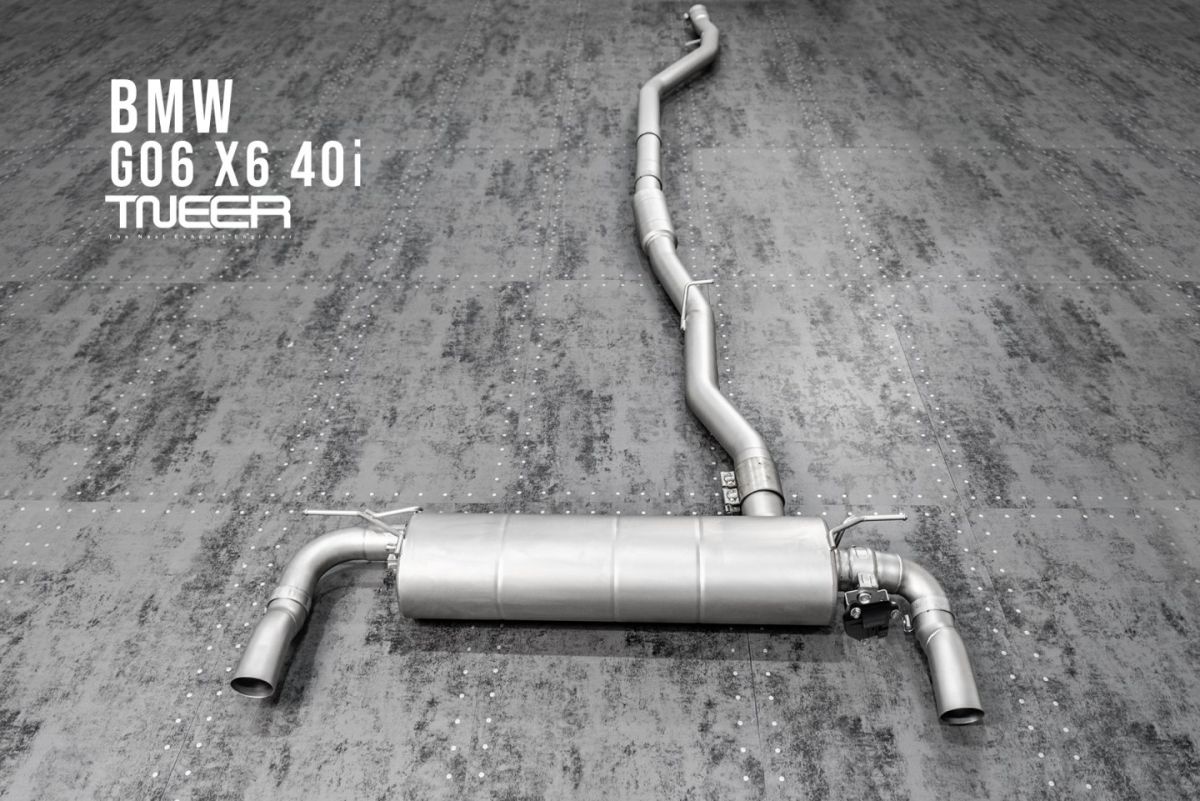

The BMW X5 G05 and X6 G06 in 40i specification are built around the B58 3.0-litre single-turbocharged inline-six producing 335 horsepower, BMW's most refined inline-six in its current road car application. The B58 is widely regarded as one of the most accomplished forced-induction inline-six engines in current production, delivering a combination of throttle response, torque delivery, and acoustic character that distinguishes it from the twin-turbocharged V8 and V6 configurations that populate the broader X5 and X6 range. The G05 SUV and G06 fastback coupe-SUV body configurations share the same fundamental front-engine all-wheel drive platform while presenting specific underbody packaging differences between the X5's taller SUV body and the X6's lower fastback roofline. TNEER engineers this complete valvetronic system to accommodate both the G05 and G06 40i, addressing the full exhaust path from the front pipe through the mid pipe to the valvetronic rear mufflers in a single cohesive system built from high-grade stainless steel throughout.

Each section is formed from single-piece high-grade stainless-steel tubing using robotic pipe bending technology, producing continuous tube geometry throughout the complete system without the weld joints and flow disruptions of multi-segment construction. The front pipe addresses the primary exhaust path from the B58's manifold outlet, establishing the flow characteristics that carry through the remainder of the system. The mid pipe continues that routing through the underbody to the valvetronic rear muffler section, maintaining consistent internal diameter and eliminating the flow disruptions that welded multi-segment construction introduces across the extended SUV underbody layout shared by both the G05 and G06. The system installs to all factory mounting locations on both body configurations, requiring no structural modification and maintaining correct chassis alignment throughout.

The ECU-controlled valvetronic rear mufflers manage acoustic output through the X5 and X6's existing driving mode architecture without secondary controllers or aftermarket modules as standard. For owners who want independent manual authority over valve position beyond what the vehicle's ECU architecture provides, TNEER offers the TACS as an optional addition. The TACS allows full manual valve control through a dedicated application interface at any time regardless of driving mode or vehicle operating condition, providing an alternative to ECU-controlled valve behavior for owners who prefer direct acoustic authority on demand.

Valves closed, the system maintains a composed tone appropriate for daily and highway use while presenting more of the B58 inline-six's character than the factory exhaust allows at any throttle position. Valves open, the full acoustic output of the 40i's turbocharged inline-six is unobstructed and responds directly to throttle input and engine speed. The B58's inline-six acoustic character at full throttle is distinct from the V8 and V6 configurations in the X5 and X6 range, reflecting the specific firing order and exhaust pulse pattern of a six-cylinder in-line configuration at sustained load. This system presents that character without the attenuation the factory exhaust imposes, on every drive.

Optional Downpipe Configurations

For owners who want to address the primary restriction point in the exhaust path, TNEER offers two downpipe specifications that deliver meaningful performance and acoustic improvement beyond what the front pipe, mid pipe, and valvetronic muffler system alone provides.

• The race downpipe removes the factory catalytic converter immediately downstream of the turbocharger outlet, where back pressure reduction has the most direct effect on turbine behavior, spool characteristics, and mid-range torque delivery. On the B58's single-turbocharged inline-six, the relationship between downstream restriction and turbocharger efficiency is immediate and measurable at every point in the rev range. These components are intended for closed course and off-road use.
• The 200-cell sport downpipe retains a high-flow catalytic substrate in place of the factory unit, reducing restriction significantly while maintaining a level of emissions compliance appropriate for street-driven builds. For X5 G05 and X6 G06 40i owners who require a balance between full-system performance and daily SUV usability, the 200-cell specification delivers a substantive upgrade within a practical operating profile.

All downpipe components are fabricated from high-grade stainless steel and engineered to the same fitment standard as the remainder of the complete system.

About TNEER:

TNEER is built around a single engineering conviction: the exhaust system is not a peripheral component. It is the primary interface between the engine and the driver's experience of it. Every system TNEER produces is developed to bring out the true voice of the engine it is built for, improving exhaust flow and delivering a distinct tone that is mechanical, raw, and directly connected to the character of the car.

The manufacturing process that defines TNEER's fitment standard is their high-tech robotic pipe bending technology. Rather than fabricating exhaust routing from multiple welded sections, TNEER forms each tube from a single continuous piece, bending high-grade material to navigate the spatial constraints of each specific engine bay without the diameter reductions, flow disruptions, and structural inconsistencies that welded multi-piece construction introduces. The result is an exhaust system with continuous tube geometry, perfect fitment to the platform it is built for, and no compromises in the routing that precision bending makes unnecessary.

For enthusiasts who regard sound and performance as inseparable elements of the driving experience, TNEER engineers each system to deliver both from the first throttle input.

Note:

• Downpipes are not CARB certified and may not be legal for use on emissions controlled vehicles; intended for off road use only.
• ECU tuning may be required due to removal of factory catalytic converters.

Fitment:

• BMW G05 X5 40i 2019-2026
• BMW G06 X6 40i 2020-2026
