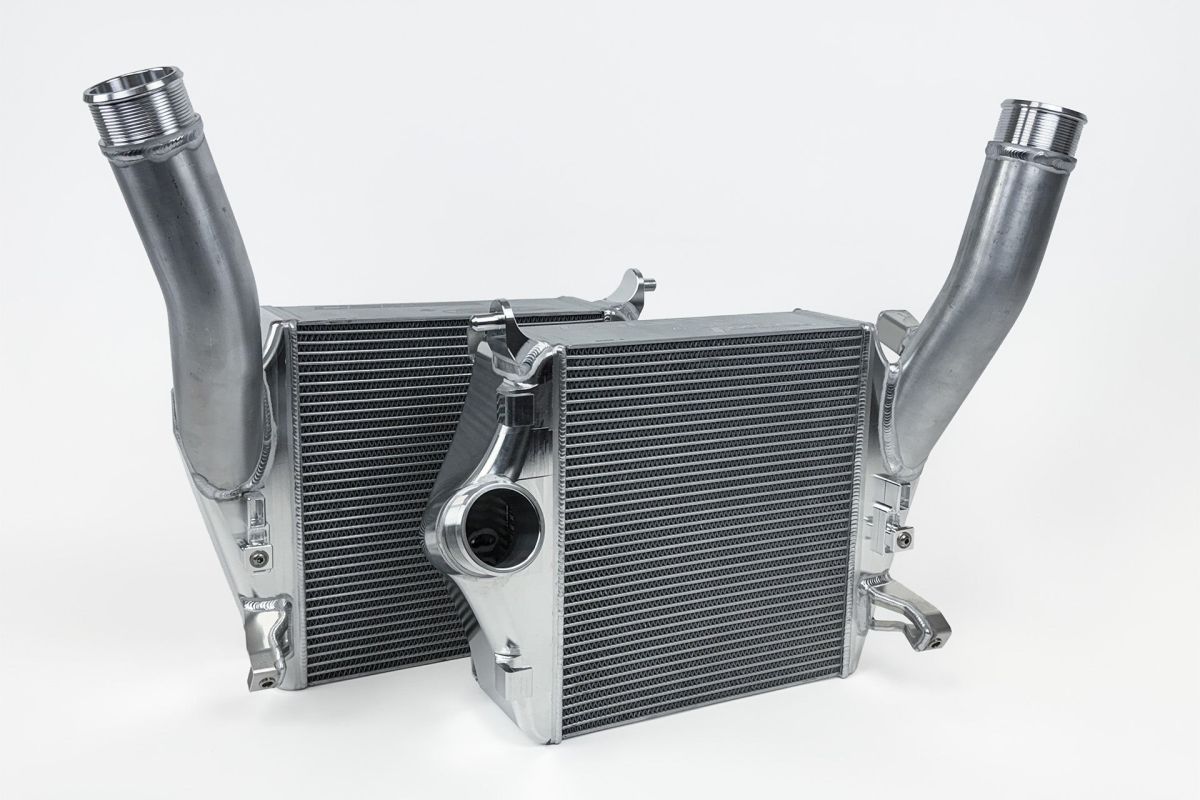

CSF Twin Intercooler Set (Raw Billet) for Audi SQ8 2020-2025

The CSF Twin Intercooler Set for the Audi SQ8 is built as a direct replacement for the factory intercoolers, matching OEM fitment and mounting locations. You can install this system using all original mounting points, which keeps the process simple and efficient. No cutting, trimming, or custom fabrication is required. All factory hoses and related components transfer over without issue.

CSF offers two finish options to suit your build. You can choose a raw billet aluminum version or upgrade to the Thermal Black Heat Dispersion Cerakote finish. The Thermal Black coating improves heat transfer and has been shown to dissipate heat up to 15 percent faster than raw aluminum under similar conditions. This helps maintain lower intake temperatures during demanding driving.

The design also improves a known weak point in the factory system. CSF replaces the OEM plastic charge pipe connection with a fully integrated aluminum pipe welded directly into the end tank. The factory setup relies on an internal O-ring seal, which has shown signs of premature wear on some vehicles. When that seal fails, it can lead to boost leaks and trigger a check engine light. By removing this failure point, the CSF design provides a more reliable and consistent solution for the Audi SQ8 platform.

Details:

  • Sold as a pair (Left & Right Intercoolers)
  • Eliminates Heat Soak and Lower Intake Air Temperatures (IAT) for Maximum Performance in High-Performance and Race Conditions
  • Formula-1 Performance Grade Cores by PWR (2-Row Cores features Rolled Tubes w/ Inner Fins)
  • CNC Machined Billet End Tanks
  • 100% TIG Welded vs OEM Crimped Plastic End Tanks for Maximum Strength & Durability
  • Made in the USA at PWR North America
  • OEM Style Inlet/Outlet Connections for Precise Fitment With All OEM Components
  • Raw Billet Aluminum Finish (CSF #8280) - Available in Thermal Dispersion Cerakote (CSF #8280B)
  • True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
  • Performance Testing by Unitronic
  • 1-Piece Welded Charge Pipe vs OEM Bolt-On Pipe w/ O-Ring (known failure point)

Fitment:

  • 2020-2025 Audi 4M SQ8 Turbocharged 4.0L V8
  • 2020-2025 Audi 4M SQ8 Premium Plus Turbocharged 4.0L V8
  • 2020-2025 Audi 4M SQ8 Prestige Turbocharged 4.0L V8
