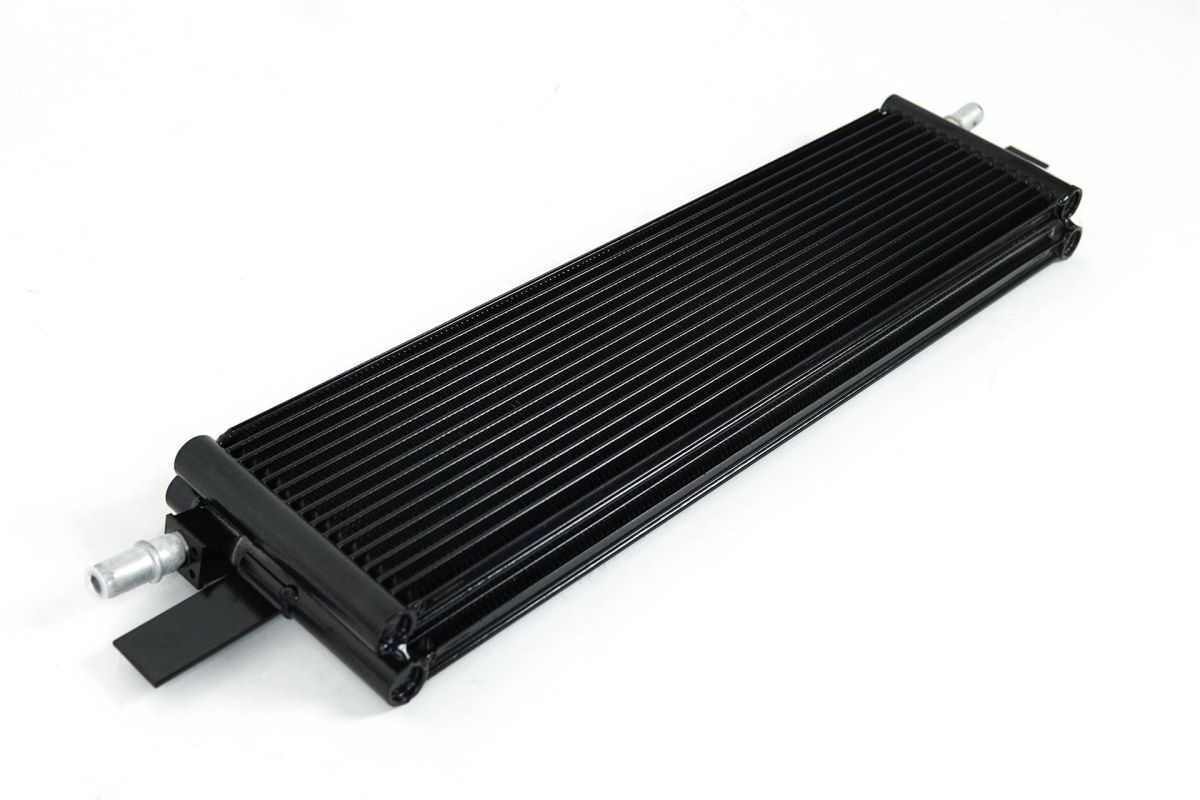

CSF Transmission Cooler for Toyota Supra (A90/A91) / BMW M340i / xDrive / M440i / xDrive / Gran Coupe (G-Series) 2020-2025
(Fits- Toyota Supra (A90/A91) / BMW M340i / xDrive / M440i / xDrive / Gran Coupe (G-Series) 2020-2025)
- Guaranteed Safe CheckoutClick to see all payment options
- Inquire now
CSF Transmission Cooler for Toyota Supra (A90/A91) / BMW M340i / xDrive / M440i / xDrive / Gran Coupe (G-Series) 2020-2025
This high-performance CSF transmission cooler for the Toyota A90 and A91 Supra, along with BMW G-Series models, features an exclusive dual core design that increases core volume by up to 240 percent. The larger oil capacity helps manage heat more effectively, supporting consistent transmission operation during track sessions, drag racing, and aggressive street driving.
During development, CSF worked closely with time attack teams, performance tuners, and race programs to address common issues such as elevated transmission temperatures, gearbox fatigue, and inconsistent shifting under load. The result is a purpose built solution designed to maintain stable temperatures and reliable performance in high stress environments.
This transmission cooler has been proven in real world motorsports applications, including use on the Titan Motorsports A90 Supra drag car, one of the first Supras to achieve an 8 second quarter mile pass. Engineered for a direct fit, this system integrates with the factory front mount heat exchanger and utilizes OEM rubber seals to maintain proper airflow through the cooling stack. The design supports efficient heat exchange without disrupting airflow to other cooling components, making it a reliable upgrade for both street and track focused builds.
Details:
- Innovative Dual-Core Design (Industry Exclusive) vs. OEM Single Core - 240% Increase in Core Volume - 130% Increase in Fluid Capacity Compared to OEM (CSF 550ml vs. OEM 240ml)
- 5.4mm Tall Multi-Louvered Fin vs. OEM 7mm - Two 16mm Stacked Cores = 32mm Core Width (44mm Overall Width) vs. OEM 15mm Core Width - Rear Cooler: 15 Rows vs. OEM 12 Rows - Front Cooler: Additional 12 Rows
- Made with CSF's AC Condenser Technology Using a 1-Row Super-High Pressure 16mm 9-Channel Microtube for Optimal Oil Flow and Maximum Surface Area Contact
- 129mm Overall Height vs. OEM 125mm Allows for Maximum Performance Without Increasing Overall Surface Area or Blocking Airflow to Rest of Cooling System
- Utilizes OEM Top/Bottom Rubber Seals for Optimal Airflow
- OEM Style "Quick Connect" Inlet/Outlet Connections
- Drop-in Fit Requires No Modifications to Install
- 2-Year Limited Warranty
- Ideal for Road Racing, Drag Racing, and Vehicles With Increased Performance and/or Transmission Tuning
Fitment:
- 2020-2025 BMW G2X M340i Turbocharged 3L L6
- 2020-2025 BMW G2X M340i xDrive Turbocharged 3L L6
- 2021-2025 BMW G2X M440i Turbocharged 3L L6
- 2024-2025 BMW G2X M440i Gran Coupe Turbocharged 3L L6
- 2021-2025 BMW G2X M440i xDrive Turbocharged 3L L6
- 2024-2025 BMW G2X M440i xDrive Gran Coupe Turbocharged 3L L6
- 2024 Toyota A90/A91 GR Supra 45th Anniversary Edition Turbocharged 3L L6
- 2023 Toyota A90/A91 GR Supra A91-MT Edition Turbocharged 3L L6
- 2020-2025 Toyota A90/A91 GR Supra Turbocharged 3L L6
- 2023-2025 Toyota A90/A91 GR Supra Premium Turbocharged 3L L6
- 2024 Toyota A90/A91 GR Supra Premium 45th Anniversary Edition Turbocharged 3L L6
