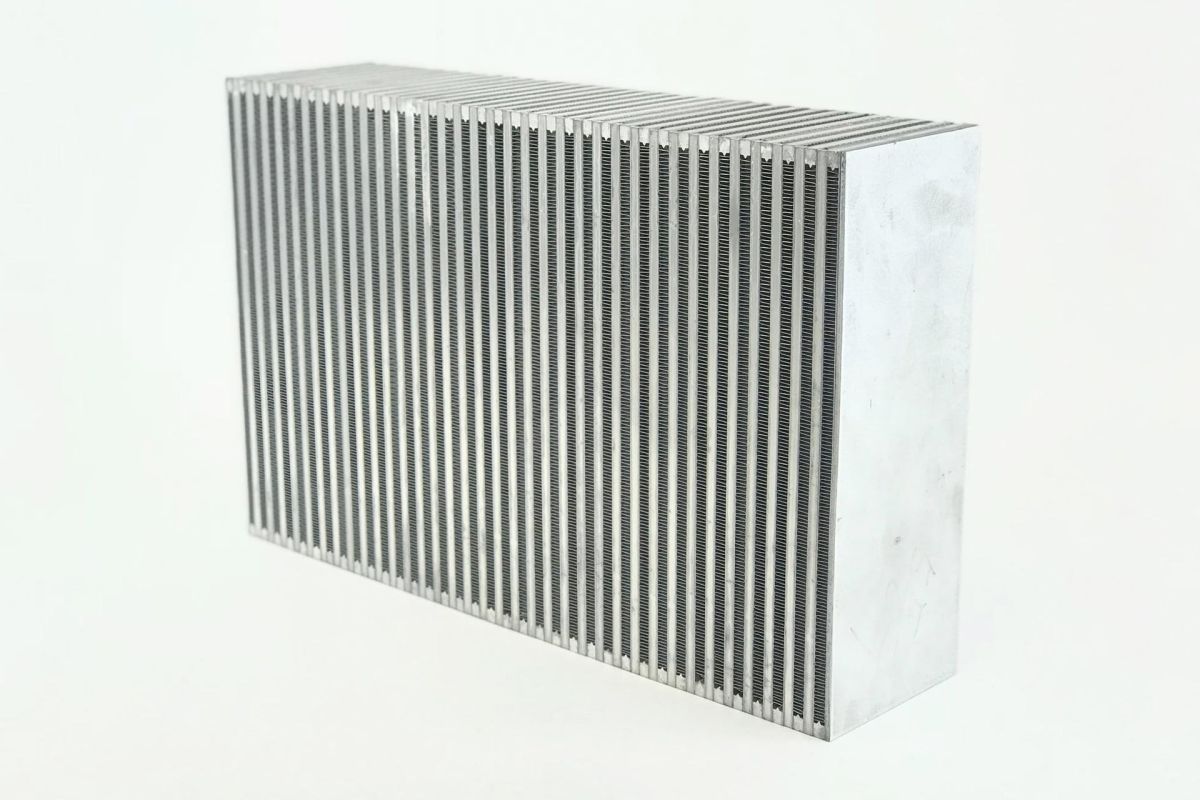

CSF HP Bar & Plate Intercooler Core (22Lx14Hx4.5W - Vertical Flow) for Nissan R35 GT-R 2009-2021

$599.00
In stock
Free Shipping

(Fits- Nissan R35 GT-R 2009-2021)

For items that are not maintained as regular inventory and are fulfilled either as made-to-order or special order from the manufacturer, we will provide confirmation of the estimated lead time and other applicable order details once you place your order. If you require delivery by a specific date, you must contact us prior to placing the order to verify that Creative Mods can accommodate your requested timeline.
  • Guaranteed Safe CheckoutClick to see all payment options
  • Inquire now

CSF HP Bar & Plate Intercooler Core (22Lx14Hx4.5W - Vertical Flow) for Nissan R35 GT-R 2009-2021

CSF Bar & Plate Intercooler Cores are trusted by leading performance tuners and motorsport builders around the world. This 22" x 14" x 4.5" vertical flow intercooler core is designed specifically for Nissan R35 GT-R applications and supports builds up to 1500 wheel horsepower, making it an ideal solution for custom high-boost setups.

Each CSF intercooler core undergoes pressure testing at 120 PSI to ensure consistent performance under demanding conditions. This level of testing helps maintain reliability in high boost environments where temperature control and airflow efficiency are critical. Every core is hand-assembled using precision jigs and fixtures to maintain proper alignment and structural accuracy. The manufacturing process takes place in a controlled environment to support consistent brazing quality and prepare the surface for seamless welding during custom fabrication.

The multi-louvered, staggered fin design is engineered to improve airflow across both the ambient and charge air sides of the core. This design increases heat dissipation, helping reduce intake temperatures and maintain stable power during aggressive driving or track use. If you are building a high horsepower GT-R or upgrading your intercooler system for improved thermal performance, this CSF core delivers the efficiency and durability needed for serious performance applications.

Details:

  • Heavy-Duty Bar & Plate Intercooler Cores
  • Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications
  • Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding
  • Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding
  • Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core)
  • Batch Brazed in CSF's State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total)
  • Strict Quality Control and Quality Testing, Including Individual Pressure Testing
  • Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services
  • Dimensions: 22"x14"x4.5" (560mm x 355mm x 115mm)
  • HP Rating: 1500
  • Vertical Flow (Nissan R35 GT-R Fitment)

Fitment:

  • 2009-2021 Nissan GT-R
