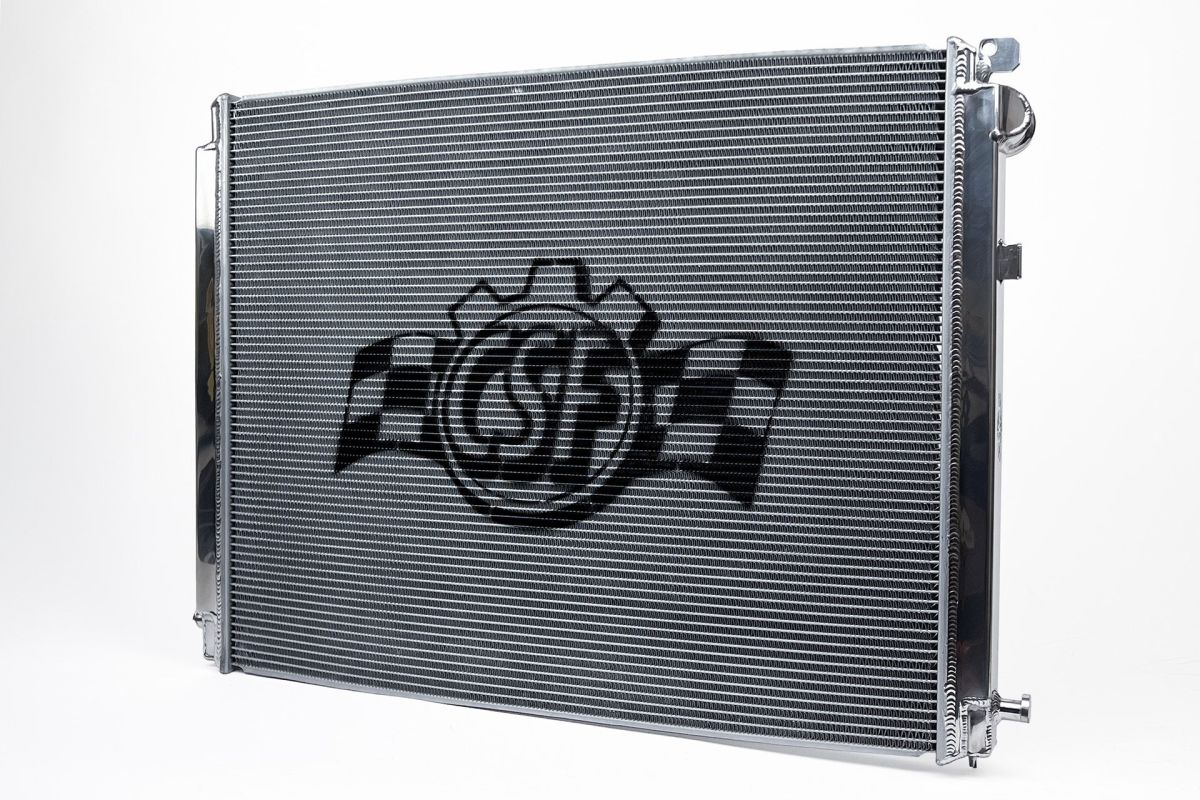

CSF High-Performance All-Aluminum Radiator for Toyota Supra (A90/A91) 2020-2025

$799.00
In stock
Free Shipping

(Fits- Toyota Supra (A90/A91) 2020-2025)

For items that are not maintained as regular inventory and are fulfilled either as made-to-order or special order from the manufacturer, we will provide confirmation of the estimated lead time and other applicable order details once you place your order. If you require delivery by a specific date, you must contact us prior to placing the order to verify that Creative Mods can accommodate your requested timeline.
  • Guaranteed Safe CheckoutClick to see all payment options
  • Inquire now

CSF High-Performance All-Aluminum Radiator for Toyota Supra (A90/A91) 2020-2025

Upgrade your cooling system with the CSF High-Performance All-Aluminum Radiator for Toyota A90 and A91 Supra. The factory radiator uses plastic end tanks and a single row 34mm aluminum core. While reliable for daily driving, this design can struggle to manage heat under aggressive driving or track use. CSF developed this radiator using real world data from race teams and performance shops. The result is a direct fit upgrade built to handle higher temperatures and extended driving sessions without performance loss. Designed as a direct replacement, the CSF radiator installs in the factory location with no cutting or modifications required. It works seamlessly with OEM components, making it a simple upgrade for both street and track builds.

CSF also pushed development further by testing early versions with motorsport partners. Initial prototypes used a 42mm dual-row core paired with 6.5mm fins and were evaluated in demanding track conditions. Feedback from these tests helped refine the final design to deliver reliable cooling performance when it matters most. If you are building a high performance Toyota Supra and need a radiator that can handle elevated heat levels, this CSF upgrade provides the capacity, airflow, and durability required for consistent results.

Details:

  • 2-Row, 42mm Ultra-High-Performance Core
  • Cooling Tubes with CSF's Exclusive B-Tube Technology
  • New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
  • CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
  • 100% All Aluminum TIG-Welded Construction
  • 1-Hour "Mirror Finish" Hand Polish
  • True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
  • Individually Leak and Pressure Tested
  • 2-Year Limited Warranty

Fitment:

  • 2024 Toyota A90/A91 GR Supra 45th Anniversary Edition Turbocharged 3L L6
  • 2021-2022 Toyota A90/A91 GR Supra A91 Edition Turbocharged 3L L6
  • 2023 Toyota A90/A91 GR Supra A91 MT Edition Turbocharged 3L L6
  • 2020-2025 Toyota A90/A91 GR Supra Turbocharged 3L L6
  • 2020 Toyota A90/A91 GR Supra Launch Edition Turbocharged 3L L6
  • 2020-2025 Toyota A90/A91 GR Supra Premium Turbocharged 3L L6
  • 2024 Toyota G29 GR Supra Premium 45th Anniversary Edition Turbocharged 3L L6
