AMS Performance Alpha 8 GTX3582 GEN II Race Turbo Kit for Toyota GR Supra MKV A90 2020
Adding more power to the new Toyota GR Supra is simple with the AMS Performance A90 2020 Toyota GR Supra Alpha 8 GTX3582 GEN II Turbo Kit. This is the first full turbo kit for the 2020 GR Supra that uses an internally gated design with the OEM electronic wastegate. This setup lets the factory ECU manage boost like it was built to. The electronic wastegate reacts faster than mechanical systems, which improves throttle response on the street or at the track.
Key features:
- GTX3582 Gen II Garrett Turbocharger with 66 mm inducer
- Uses the factory electronic wastegate for OEM-like boost control
- High-efficiency exhaust manifold for better flow and faster spool
- Sheathed coolant and oil lines for better heat control
- TiAL internal wastegate housing with 3.5-inch V-band discharge
- 4-inch powder coated aluminum intake piping
- CNC billet aluminum oil and water port AN adapters for a leak-free install
- Pre-installed oil and water lines with a clocked compressor cover to save install time
- Reusable dry media air filter
- Complete kit with all hardware, lines, and couplers included
This kit delivers clean integration, strong performance gains, and sharp throttle response. It’s designed to make serious power without giving up factory drivability.
Engineered to Win
The SnailWorks Engineering Team spent hundreds of hours refining the AMS Performance A90 2020 Toyota GR Supra Alpha 8 GTX3582 GEN II Turbo Kit. The goal was simple. Build the best performing, highest quality, and easiest to install turbo kit available. The MKV turbo kit was designed with smooth, direct airflow in mind. Fewer bends and restrictions mean more air moving efficiently through the intake and exhaust and into the B58 engine. Every small detail matters. The team built CNC machined adapters that let the AN coolant and oil lines connect directly to the engine for a clean, leak-free install. They also made a CNC machined actuator rod adapter so the factory electronic wastegate mounts cleanly to the new turbo.The Alpha 8 Turbo Kit bolts right in. No cutting. No hacking. No sketchy workarounds. It’s fully compatible with A/C, power steering, and every other factory option. You can also return the car to stock with only a few affordable parts. The kit works with the AMS 3-inch charge pipe you may already have, so you won’t waste money replacing it. This design puts the Alpha 8 Turbo Kit at the top of its class for performance, quality, and ease of installation. It’s engineered to work hard, fit right, and deliver serious power.

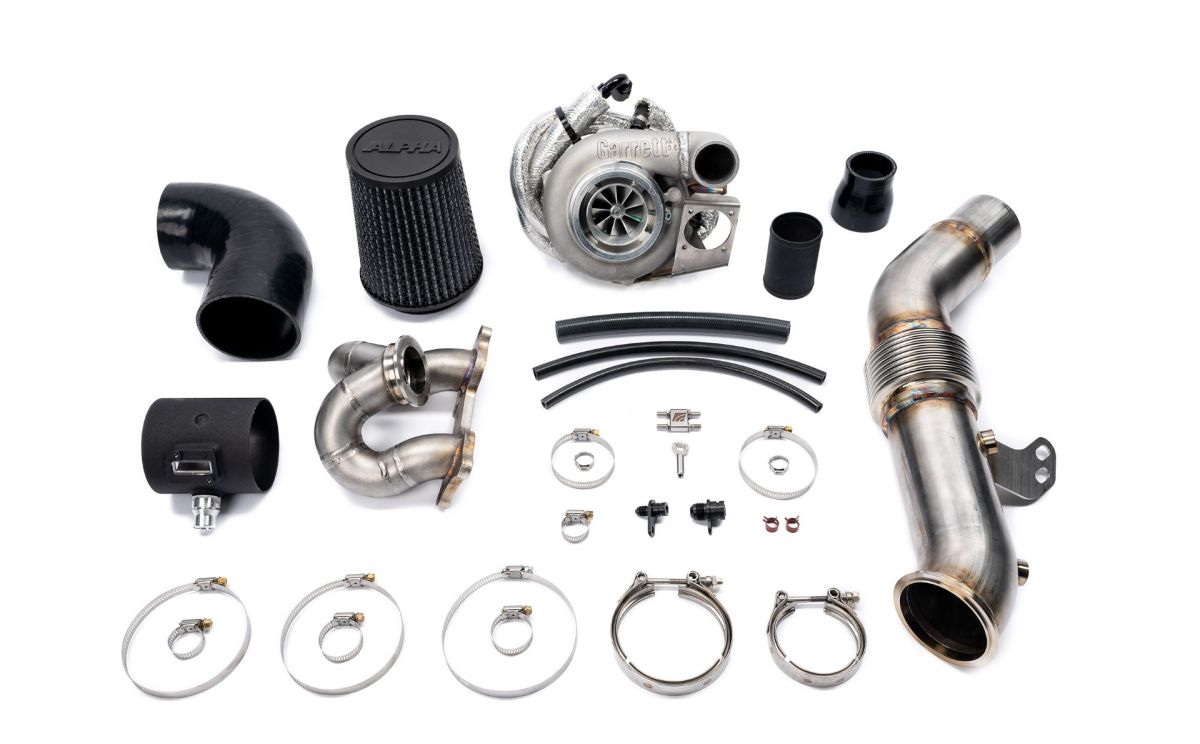

Kit Includes
- GTX3582R Gen II Garrett© Turbocharger
- TiAL Internal Wastegate Exhaust Housing with 3.5″ V-Band Discharge
- AMS Performance Exhaust Manifold w/ 1.5″ Primaries
- AMS Performance CNC Billet Aluminum Wastegate Rod Adapter
- AMS Performance Powder Coated 4″ Aluminum Intake Piping w/ Sensor Bung
- AMS Performance Dry Media Air Filter
- AMS Performance Tig Welded 3.5″ 304L Stainless Steel Downpipe
- AMS Performance CNC Billet Aluminum Oil And Water Port AN Adapter Fittings
- AMS Performance Ancillary Components, Including all Hardware, Lines, and Couplers
Applications
- 2020 Toyota GR Supra w/ B58 3.0L Turbo Engine (2 Port)
Notes
- A custom charge pipe solution will need to be fabricated during turbo kit installation, unless you are using the AMS Performance GR Supra Charge Pipe.
