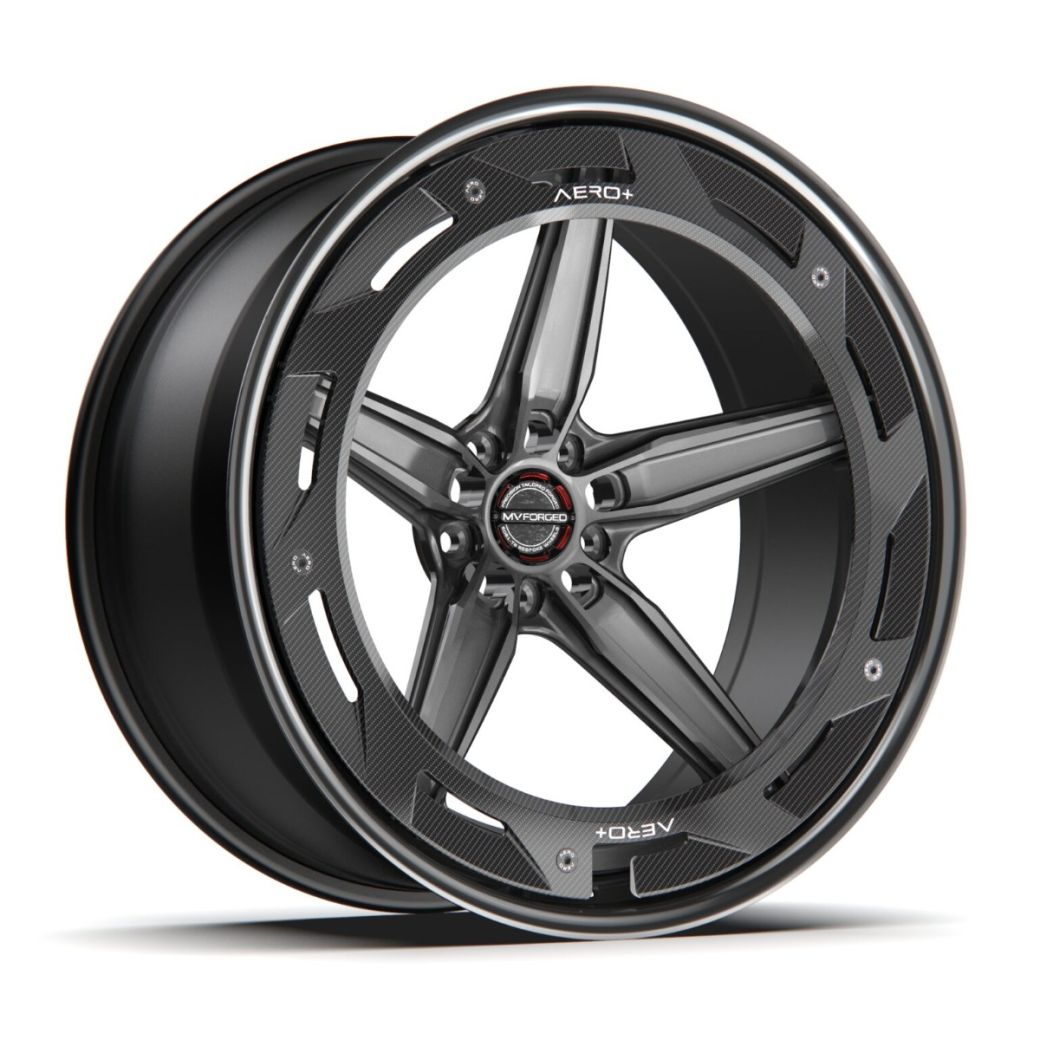

MV Forged AERO+ SERIES AR-500 3-Piece Wheel

MV Forged AERO+ SERIES AR-500 3-Piece Wheel

The AR-500 Aero+ three-piece wheel introduces an aerodynamic function to wheel design that goes beyond mass reduction. The system operates through the rotational movement of the wheel itself, accelerating air through window channels between the structural spoke section and the aero disc cover, then exiting through external orifices in the assembly. The practical outcomes are measurable. Brake cooling improves through increased airflow directed at the caliper and rotor. Downforce contribution increases. Underbody pressure is reduced. These are aerodynamic effects typically addressed at the body and diffuser level. The AR-500 Aero+ achieves them at the wheel. This modular design is often viewed as a four-piece wheel due to the added aero disc, which is used for performance and visual impact. MV Forged classifies it as a true three-piece wheel, made up of a separate outer lip, inner barrel, and center face that are assembled to form the core structure.

The aero disc is available in three material specifications: twill carbon fiber, forged carbon fiber, and aluminum. Each presents a different balance of weight, surface finish, and visual character. Twill and Forged carbon delivers aesthetic with proven composite performance. The aluminum disc option provides the aerodynamic function of the cover system within a more conventional material specification. This option also allows for different surface finishes for owners looking to take their build to the next level.

The hardware throughout the AR-500 aero disc is Grade 5 titanium, machined to the same milling standard as the wheel's structural components. Grade 5 titanium, the aerospace alloy designation for Ti-6Al-4V, offers a tensile strength comparable to steel at roughly half the density, with corrosion resistance that exceeds both steel and aluminum in demanding environments. At the fastener level, that material specification contributes to overall assembly mass reduction while maintaining the clamping integrity the system requires.

The result is a wheel that addresses aerodynamic performance, brake thermal management, and unsprung mass reduction within a single assembly, finished to a standard consistent with the platforms it is built for, including Ferrari, Lamborghini, McLaren, Mercedes-Benz, and Porsche applications.

Wheel Finish Options:

• Standard color finishes are offered in gloss, satin, or textured clear coat options for the wheel center, outer barrel, and inner barrel. Each finish is designed to give you flexibility in customizing the overall look while maintaining durability for both street and performance applications.

• Transparent color options are available for an additional cost and provide a custom finish for your build. These finishes can be ordered in either gloss or satin, depending on your preferred look. Each option is applied over a base such as brushed metal, high-luster polish, or stone, allowing you to tailor the final appearance to match your vehicle’s style.

Details:

• Lightweight construction designed to reduce overall vehicle weight and improve performance
• Manufactured from aerospace grade 6061 T6 forged aluminum for durability and long-term reliability
• Precision engineered for exact vehicle specific fitment to ensure proper installation and function
• Modular width options allow for a tailored stance and fitment setup
• Wide range of finish options available to suit different styles and builds
• Machined pocketing reduces weight, which improves handling, braking response, and acceleration
• Optional centerlock configuration for a motorsport inspired setup
• Diameters: 19″ | 20″ | 21″ | 22″ | 23″ | 24″
• Widths: 8″ | 8.5″ | 9″ | 9.5″ | 10″ | 10.5″ | 11″ | 11.5″ | 12″ | 12.5″ | 13″

Aero Disc Options:

• The MV Forged AERO+ aero discs are designed to give your wheel set a more refined and customized look. These aero discs are available in a range of finish options, including standard, polished, and brushed color selections, allowing you to match your existing wheel configuration or overall vehicle theme.

• For those looking to incorporate carbon fiber elements, the AERO+ aero discs can be ordered in both twill and forged carbon fiber. Each option is available in either gloss or satin, giving you flexibility based on your build style, whether it is focused on street presence, show presentation, or performance-inspired design.

• MV Forged also offers the ability to customize the logo on the aero discs by backfilling in your choice of color. This added detail helps tie together accent colors across your wheels, brakes, and exterior components, creating a cohesive and intentional appearance.

Premium Options:

• Floater Caps + Lug Covers Detail:
  Large floating center caps designed to cover lug hole openings for a seamless wheel face. Ideal for custom builds that require a premium floating cap setup with full lug coverage.
• Floater Cap Lug Covers Only:
  Designed for vehicles equipped with OEM floating center caps, this option includes only the lug covers needed to complete the look. Common fitment includes Rolls-Royce models and similar applications.
• OEM (Ferrari, Lambo, Benz, Porsche, Ect) Cap Detail:
  Retain your factory center caps with precision-machined wheel fitment. Compatible with OEM caps from Ferrari, Lamborghini, Mercedes-Benz, and Porsche for a direct and secure installation.
• Center Lock Application:
  Built for vehicles with center lock systems. Each wheel is machined to ensure proper fitment with the OEM center lock hub and nut for accurate installation and performance.
• Logo Text Fill:
  Customize the engraved wheel logos with color-matched text fill. This option allows you to match accents, brake calipers, or exterior color themes for a cohesive finish.
• MCL Center Lock Style Caps w/Lug Plate:
  Get the center lock appearance without converting your vehicle. Designed for standard lug setups, this option delivers the visual style of a center lock wheel while maintaining factory mounting points.
• 4PC Cap Upgrade:
  Upgrade from the standard center cap to a three-piece design featuring a carbon fiber insert and a customizable outer ring. Secured with titanium hardware for a premium finish and long-term durability.

Logo Color Fill Options:

MV Forged also offers a wide range of logo options and color fills. You can choose from multiple colors for branding elements, lettering, and accents to match your vehicle or overall build theme. This adds another level of personalization without changing the wheel finish itself.

• Upgrade your wheel with logo, text, and groove color fill options. Choose any MV Forged color including, Black, Graphite, Chalk Grey, White, Gold, Orange, Pink, Pastel Pink, Purple, Blue, Tiffany, Blue, Miami Blue, Rally Yellow, Acid Green, Neon Yellow or Red to match your build.
• This option adds a custom detail that stands out on the street and at shows. Ideal for drivers who want a personalized finish that complements their vehicle’s color scheme and overall design.

Center Cap Options:

MV Forged center caps are designed to add detail, contrast, and personalization to each wheel setup. Every cap is built with the same focus on material quality and finish consistency as the wheels themselves, giving you a cohesive and refined final look. All MV Forged wheels come standard with a two-piece center cap. This design provides a clean base while allowing customization through different logo styles and color combinations. For customers looking for a more detailed appearance, upgraded cap options are available, including advanced multi-piece designs that introduce additional depth and hardware accents.

• Premium cap upgrades include carbon fiber options in both 2x2 twill and forged carbon constructions. The carbon structure allows light to reflect differently across the surface, creating a more dynamic visual compared to standard finishes.
• Multi-piece cap configurations expand customization further. These designs incorporate exposed titanium hardware and layered construction, giving the center cap a more technical and motorsport-inspired appearance. Hardware finishes are available in black, silver, gold, and burnt titanium, allowing you to match or contrast with your wheel setup.

Standard 2PC Carbon Fiber Center Caps:

Premium 4PC Carbon Fiber Center Cap:

About MV Forged:

Every set of MV Forged wheels are designed, engineered, and manufactured in-house at their Southern California facility. This hands-on process gives MV Forged full control over production, materials, and final fitment. With more than 70 years of combined forged wheel experience, the team focuses on consistent quality, precise tolerances, and reliable performance for high-end builds.

Each wheel is developed using advanced Finite Element Analysis testing. This method allows engineers to evaluate stress points, optimize weight distribution, and maintain long-term durability. The result is a forged wheel that delivers reduced rotational mass, improved responsiveness, and dependable strength for both daily driving and high-performance applications.

MV Forged wheels are built for exotic, luxury, and performance vehicles. They are engineered to meet the expectations of drivers who demand proper fitment, durability, and refined design in every detail.

Note:

• Wheels are all sold individually
• Some bolt patterns may require slight adjustments to the spoke design to properly accommodate additional lug pocketing and ensure precise fitment.
• MV Forged wheels are built to order to match your exact vehicle fitment and finish preferences. After you place your order, a wheel specialist from our team will contact you to confirm sizing, offsets, and color options before production begins. This process helps ensure proper fitment for your specific application and avoids any issues during installation.
